Project Entry in LSAA 2011 Design Awards (Cat 7, 5004) John Power Stand - Eagle Farm, Brisbane

PROJECT DESCRIPTION

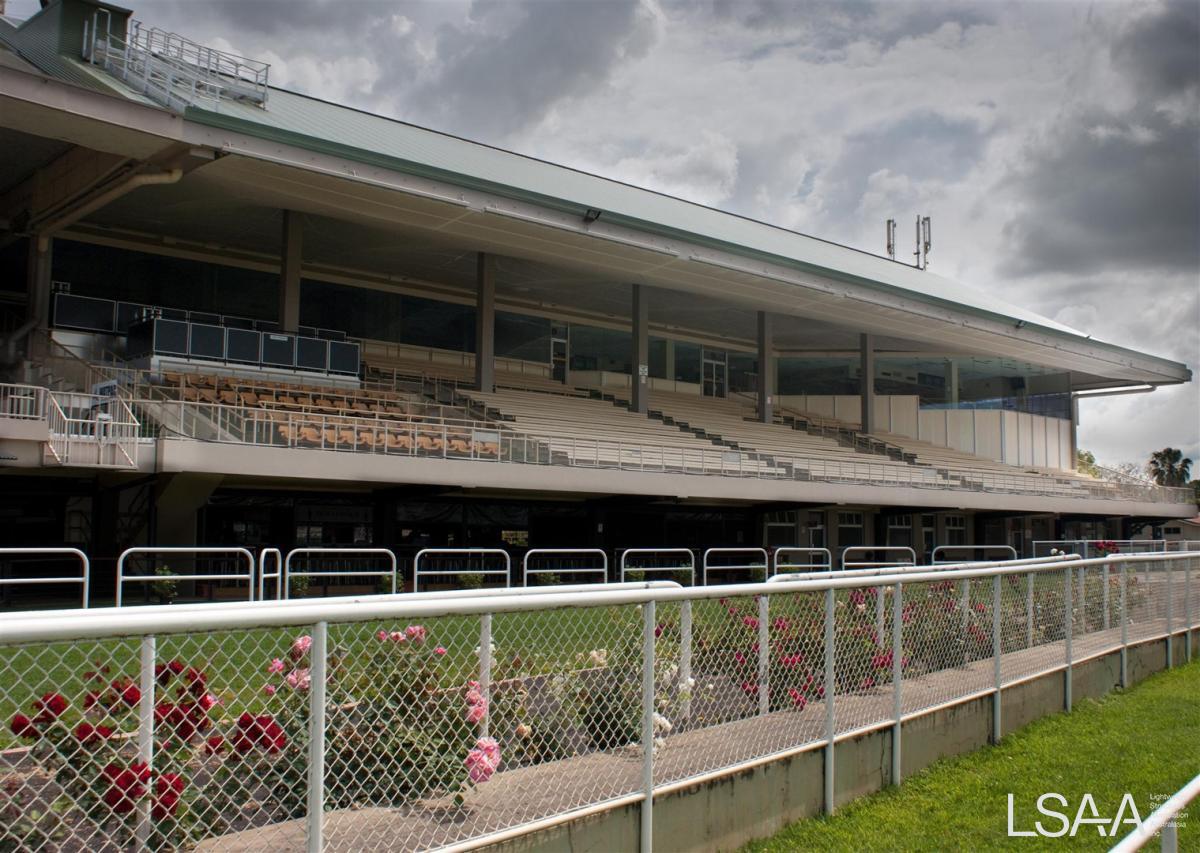

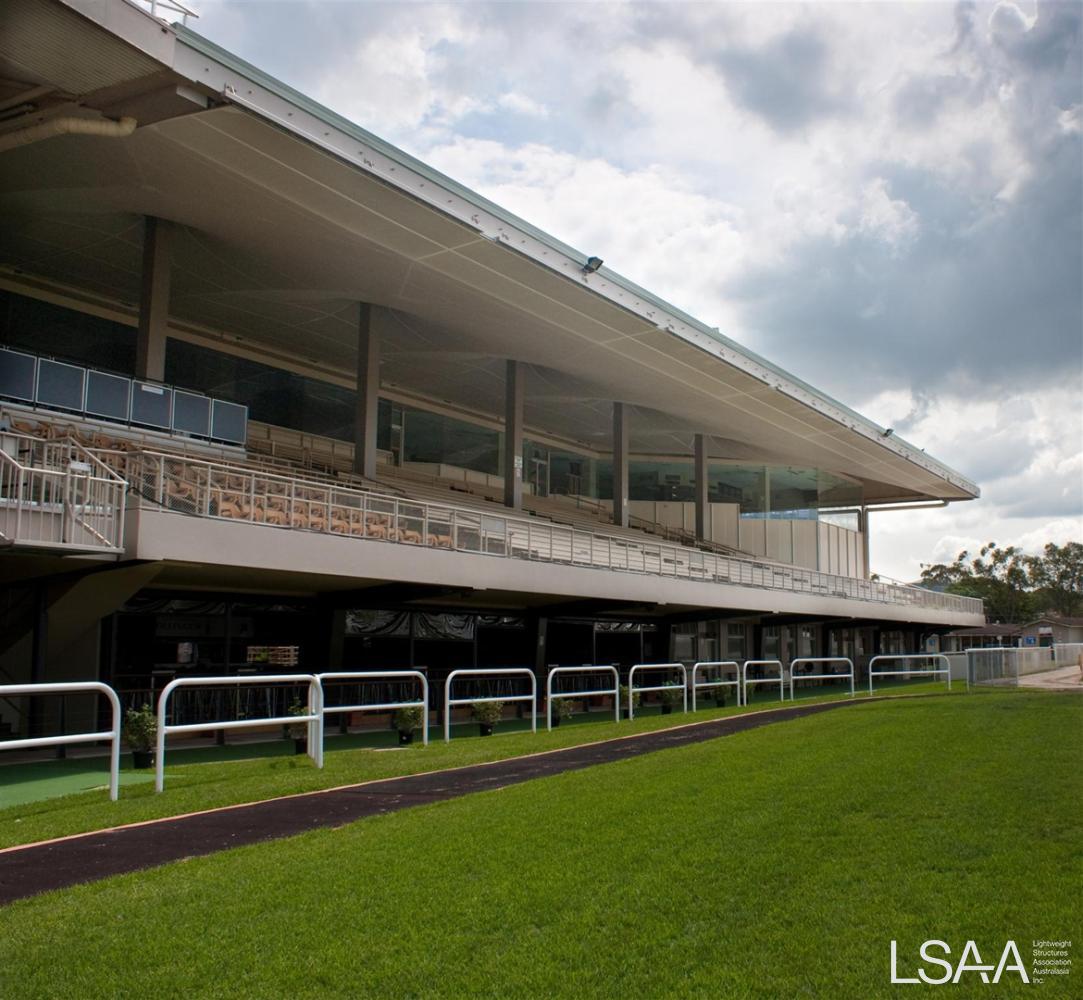

Eagle Farm Racecourse is an iconic Brisbane building, hosting race days twice weekly and accommodating hoards of racegoers every year. The main stand named John Power Stand was erected in the early 1900s. Since then the structure has aged leaving an unsightly concrete ceiling viewable from the main observation area.

LSAA2011DA500404
LSAA2011DA500414
LSAA2011DA500415
LSAA2011DA500413
LSAA2011DA500412
LSAA2011DA500411
LSAA2011DA500410
LSAA2011DA500409
LSAA2011DA500408
LSAA2011DA500407
LSAA2011DA500406
LSAA2011DA500405
LSAA2011DA500403
LSAA2011DA500402
LSAA2011DA500401
LSAA2011DA500400
LSAA2011DA500404 LSAA2011DA500414 LSAA2011DA500415 LSAA2011DA500413 LSAA2011DA500412 LSAA2011DA500411 LSAA2011DA500410 LSAA2011DA500409 LSAA2011DA500408 LSAA2011DA500407 LSAA2011DA500406 LSAA2011DA500405 LSAA2011DA500403 LSAA2011DA500402 LSAA2011DA500401 LSAA2011DA500400

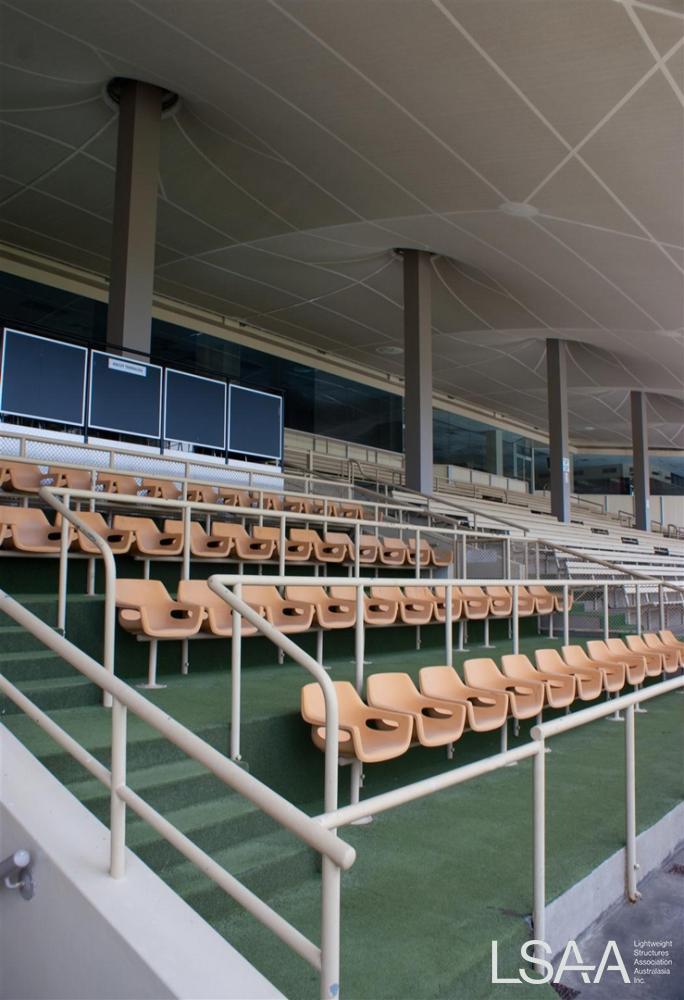

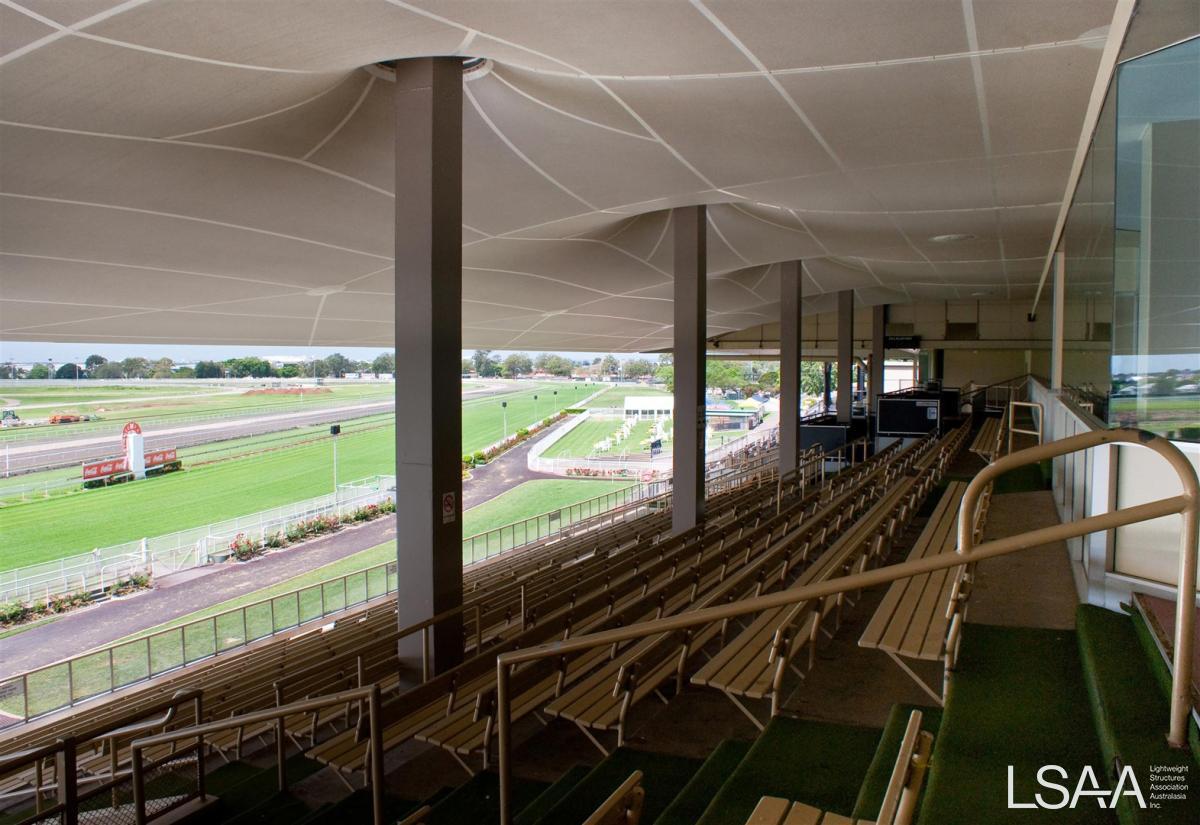

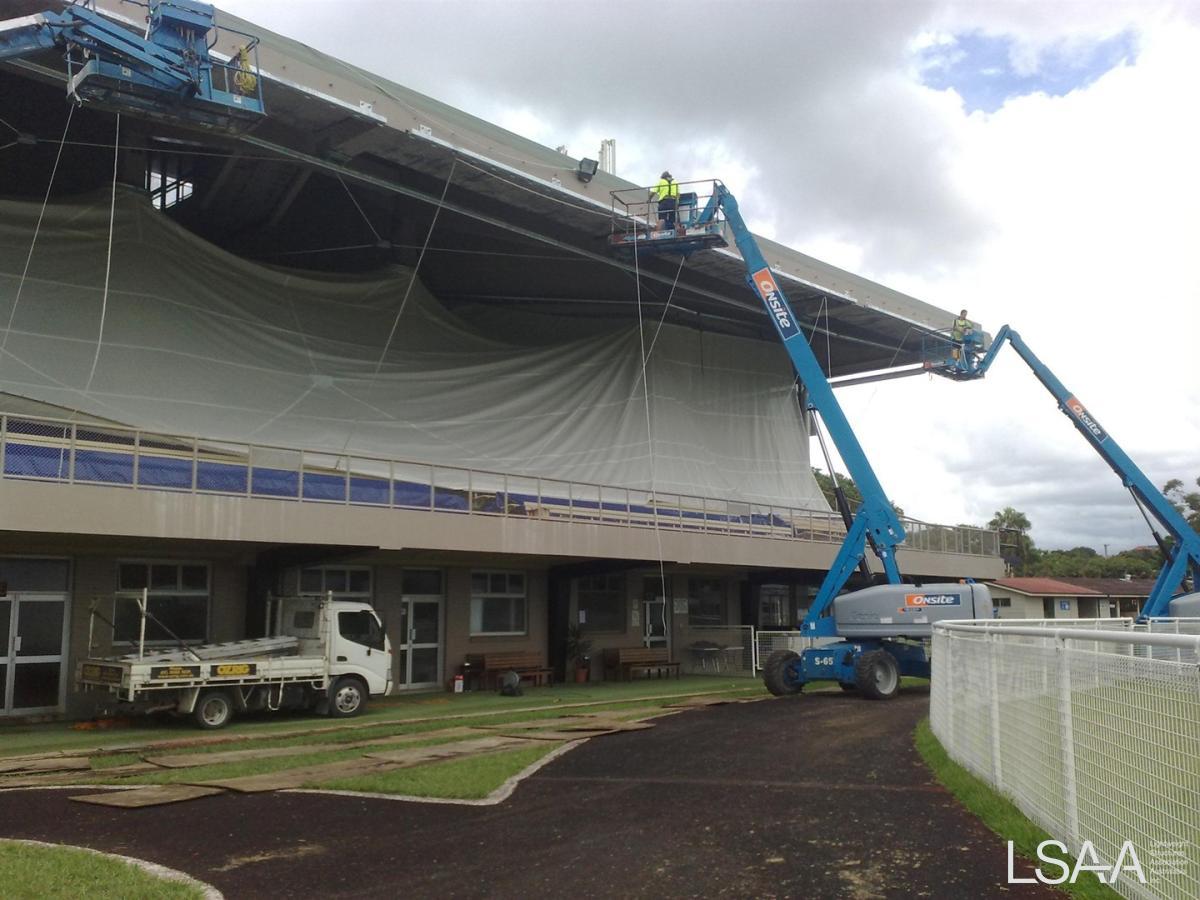

MakMax was engaged to supply a permeable ceiling structure to cover the concrete from view while allowing access for inspection purposes. This structure also needed to eliminate nesting areas for birds under the old roof. MakMax engineers used the perimeter or building as well as the support columns to sustain the fabric, although the outcome is much different to look at the principals of the structure is not unlike many conic structures.

The addition of this fabric ceiling gives John Power Stand a much needed facelift. Our client Watpac Speciality Services is very pleased with the result.

DESIGN / FABRICATION / INSTALLATION BRIEF

John Power Stand had an issue with an old concrete deck that was deteriorating and dropping small chips of concrete onto patrons below. A PVC mesh membrane was proposed to stop these chips from falling into people and improve the appearance from below. Another reason to add the membrane ceiling was to remove nesting areas for birds, the aging grandstand had become home to a number of pigeons. By installing the ceiling structure there would be no place for a bird to nest let along stand in the area.

STRUCTURAL SYSTEMS

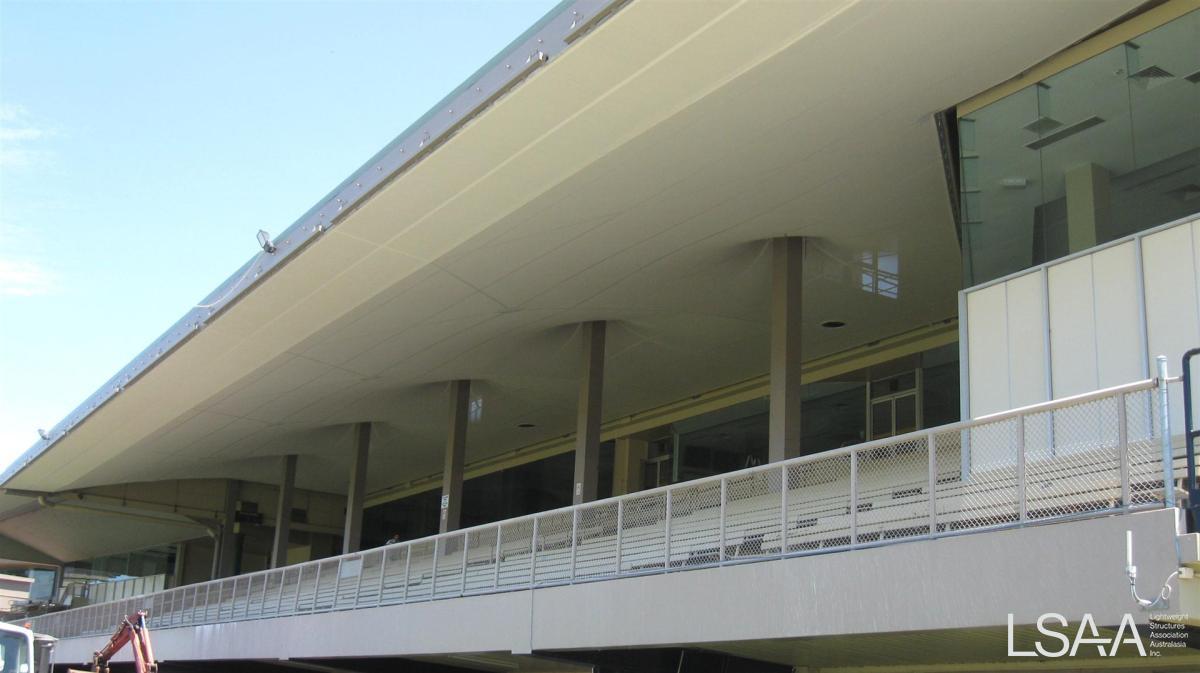

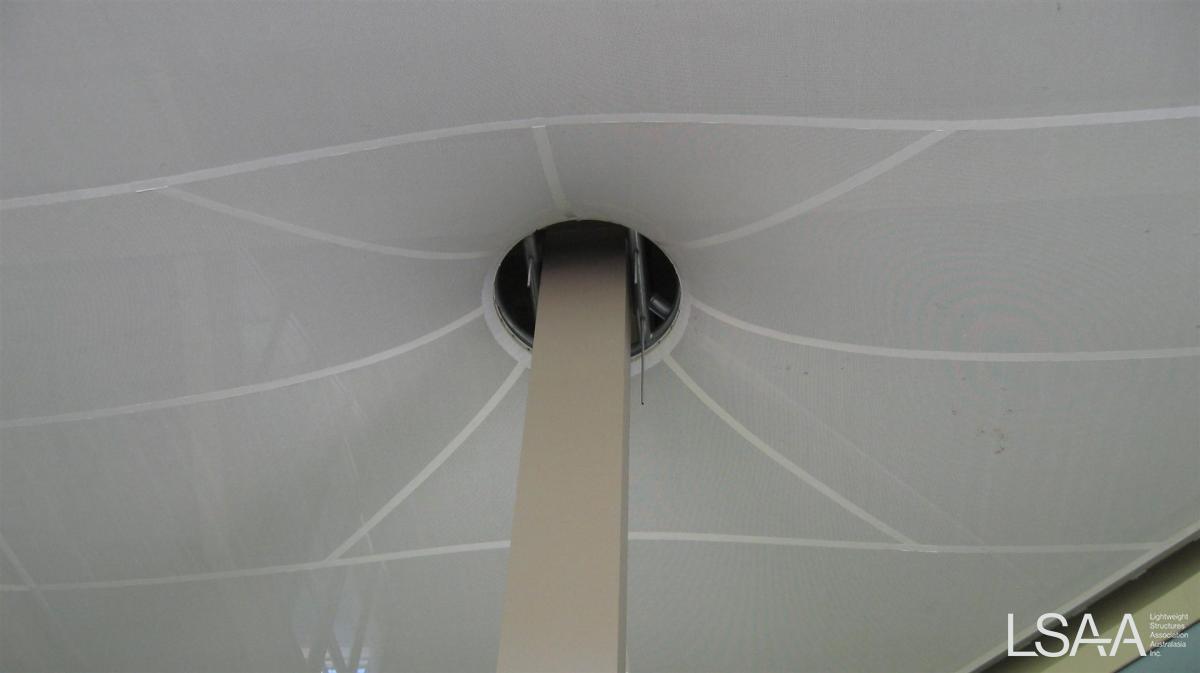

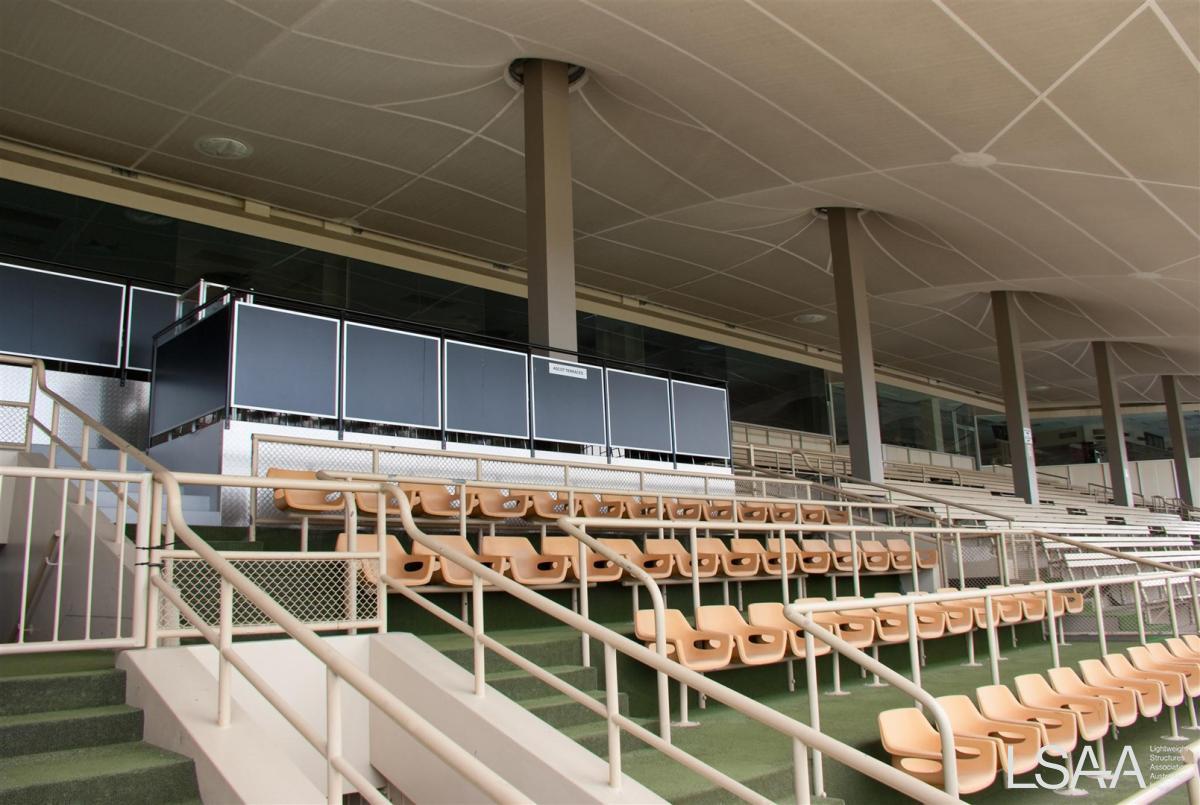

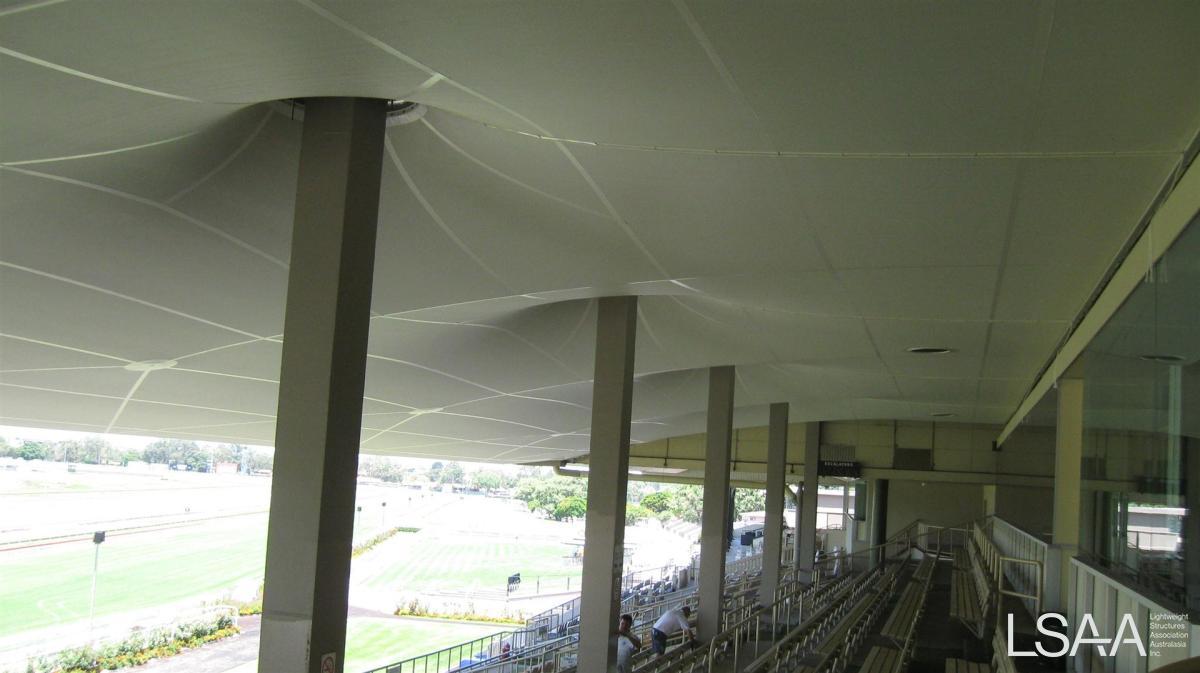

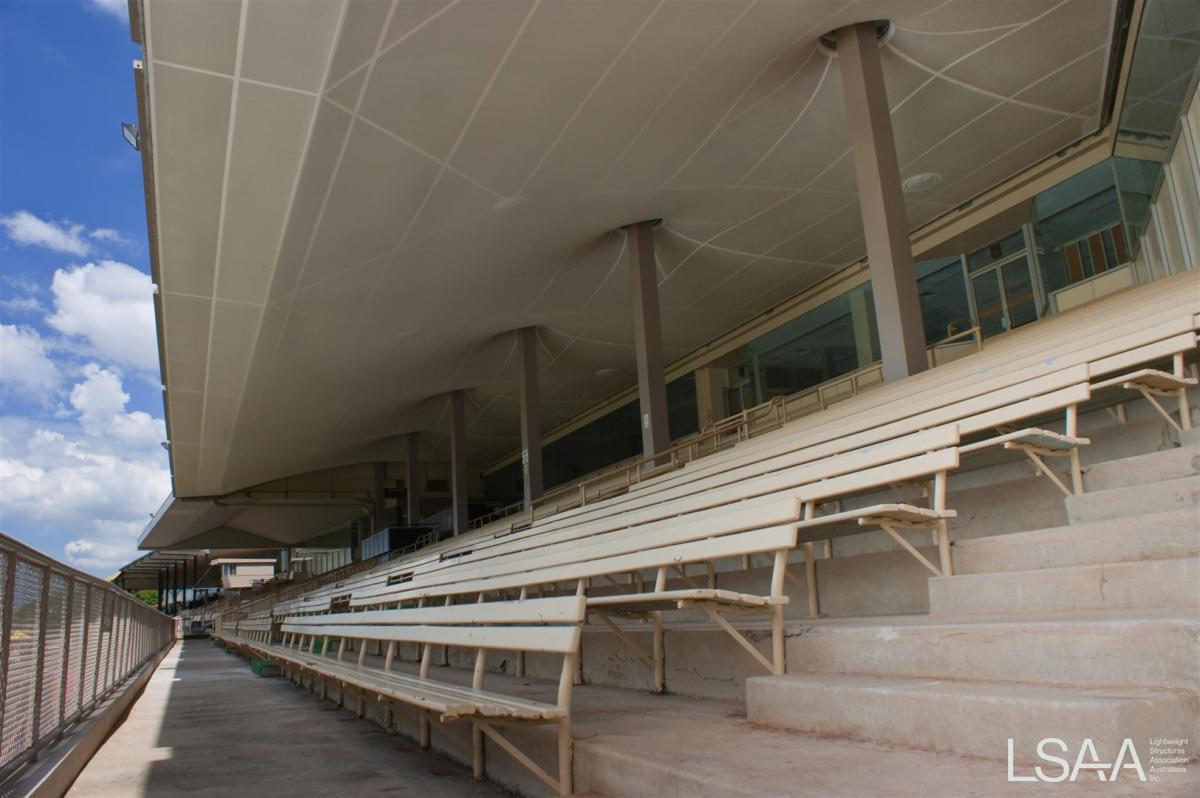

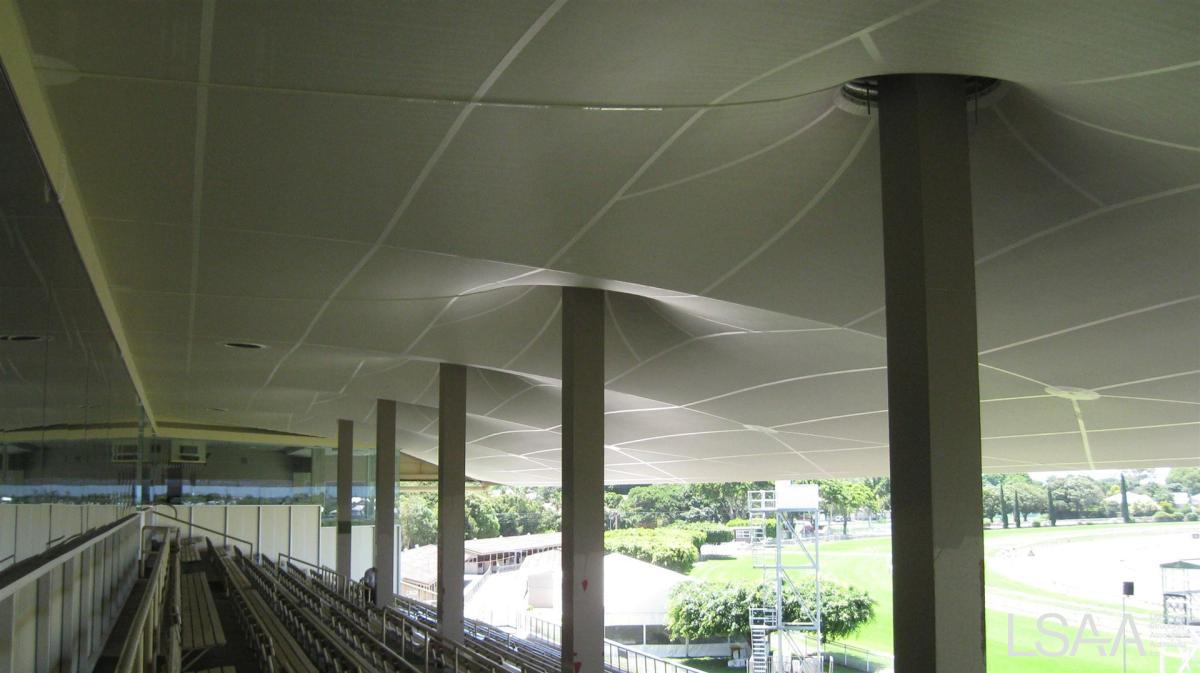

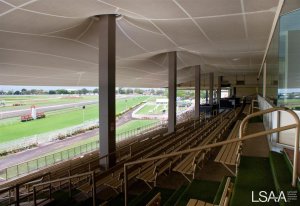

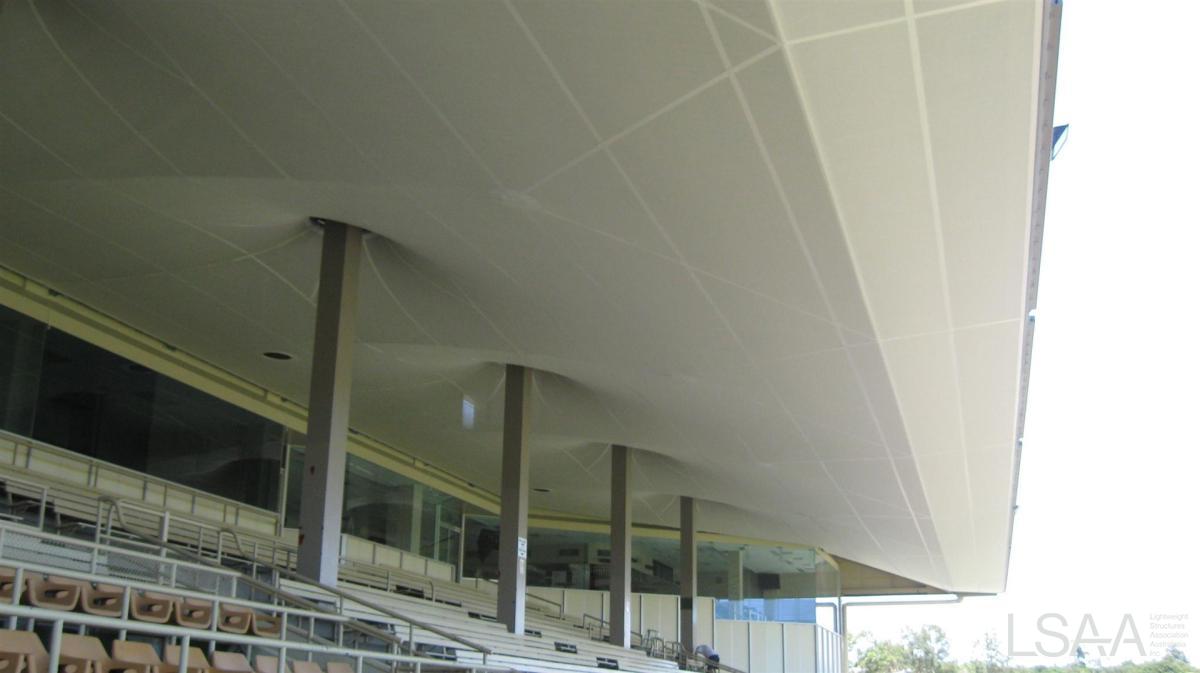

The membrane proposed perimeter mounted into the concrete grandstand. Fabric form was achieved by introducing conical features at every steel column. These conic shapes reduce membrane stresses under wind loading and create a more interesting, dynamic shape to compliment the grandstand. Valley cables were also introduced to manage fabric deflections in the flatter areas and provide additional fabric form.

MATERIALS

Ferrari 392 mesh was chosen for this project for its light weight and durability, however, the most important aspects of this fabric were the high level of airflow it provided as well as its low maintenance. The 1,200sqm of fabric was sources locally within Australia from Innova International.

FABRICATION

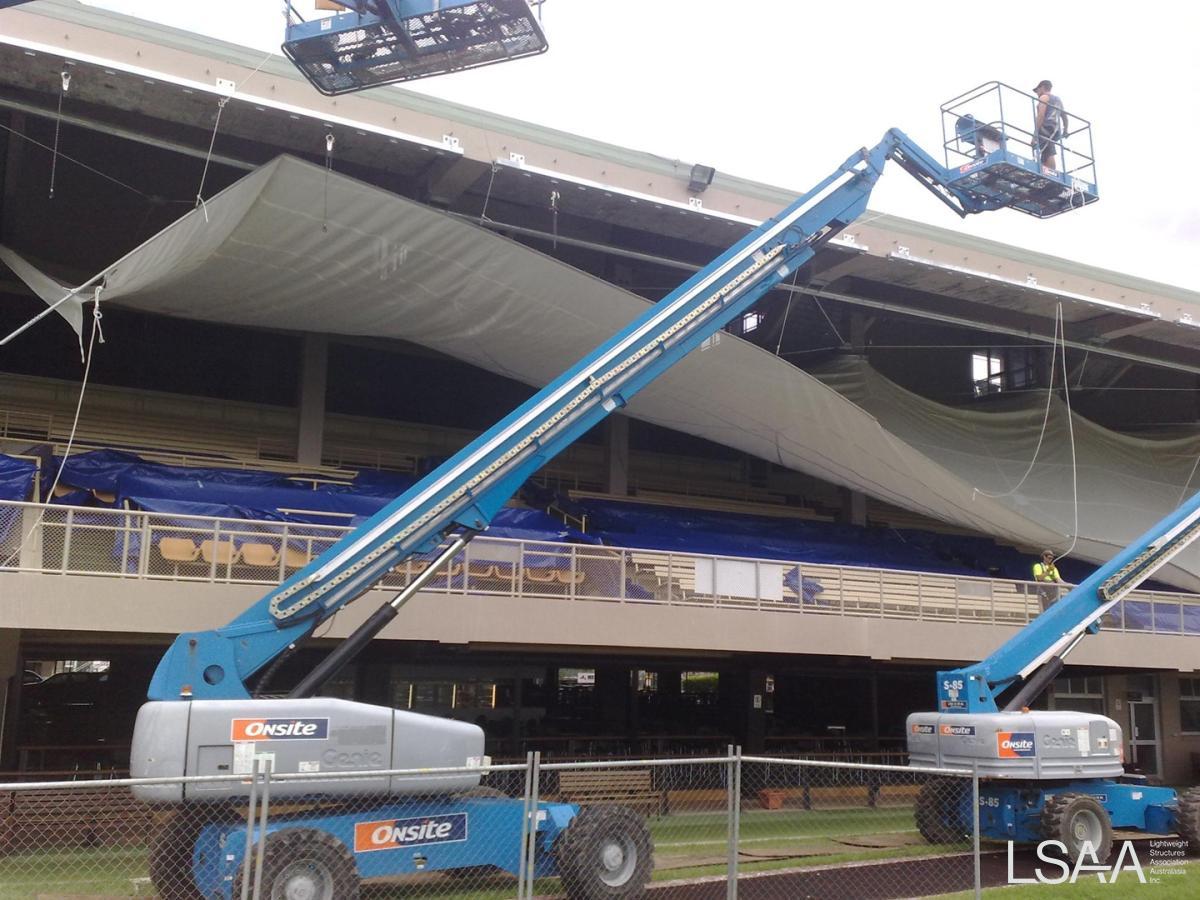

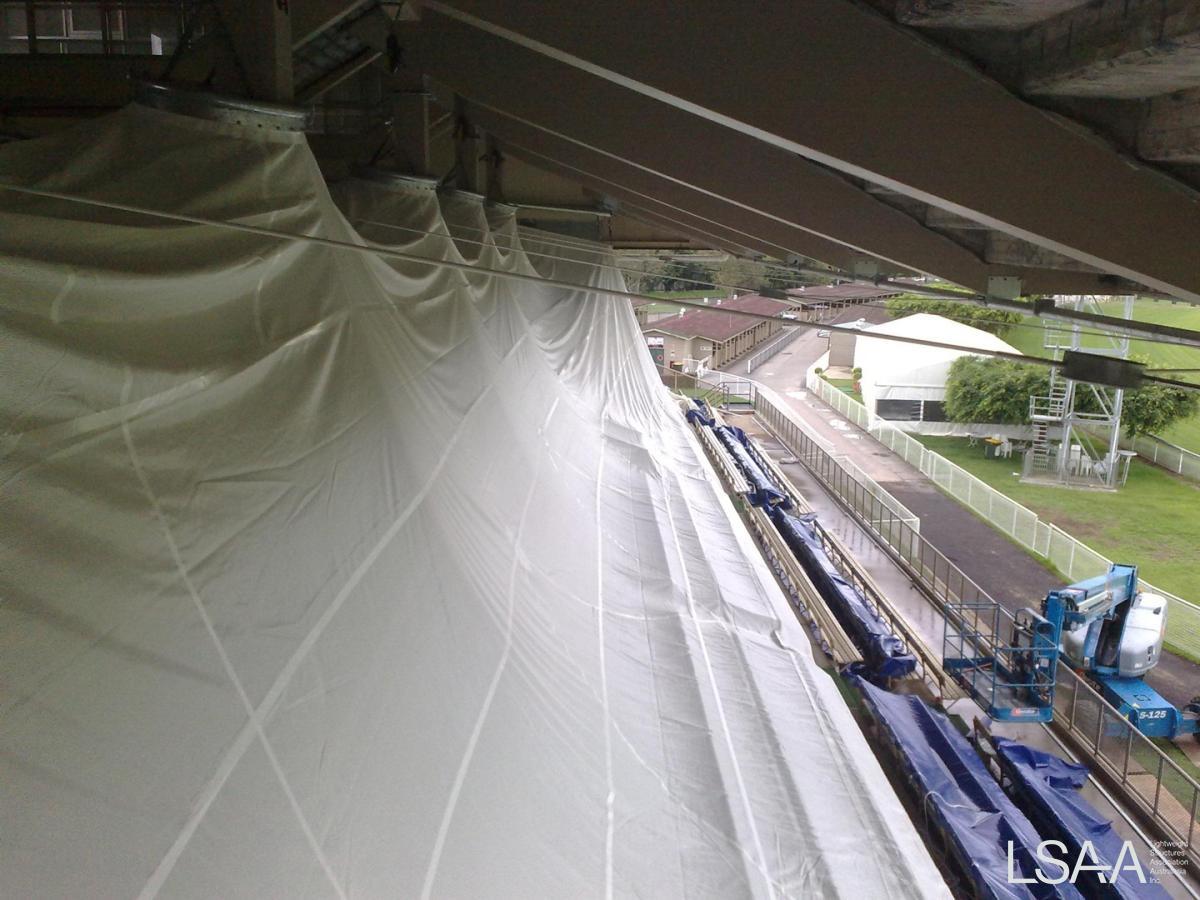

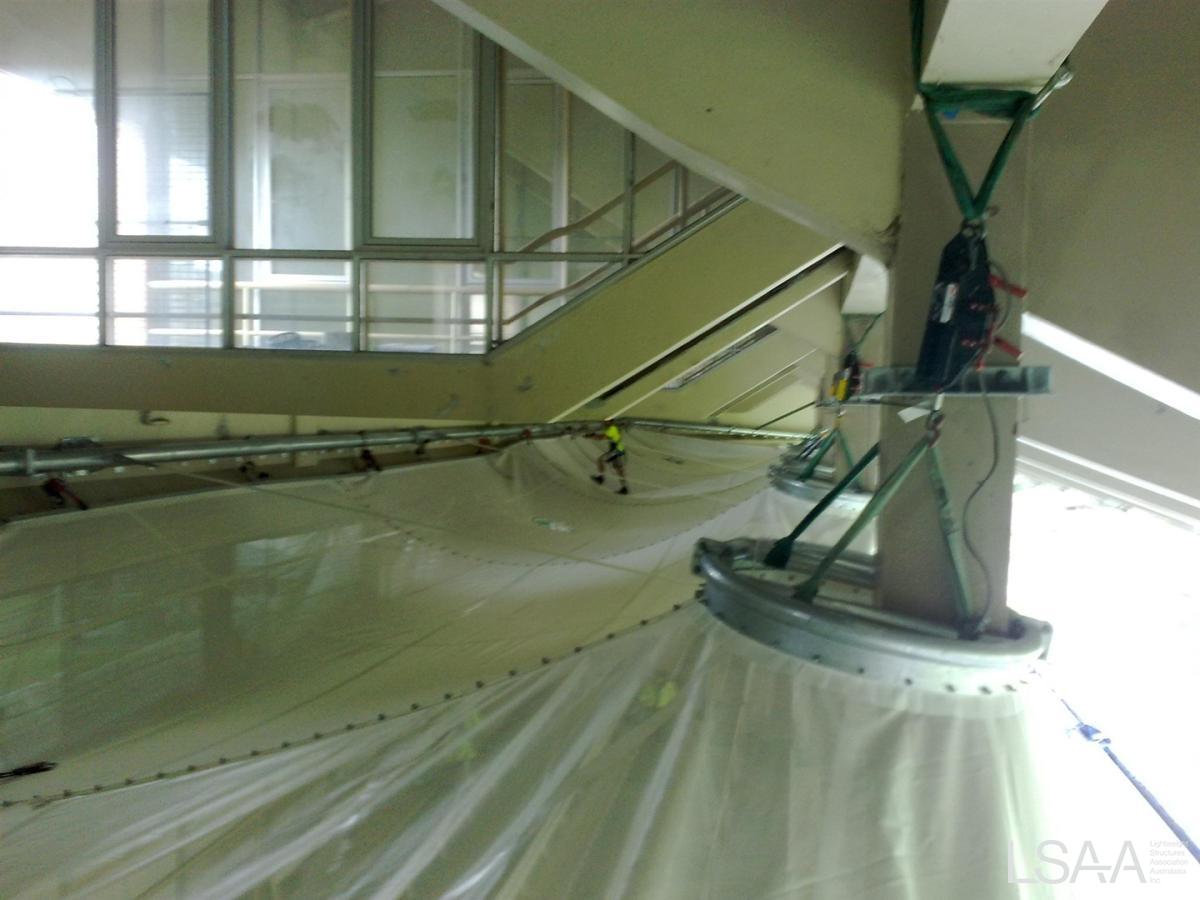

Being a simple PVC coated mesh the Ferrari 392 mesh fabric was high frequency welded in the Brisbane factory. Given the very close proximity to site, this was ideal. Using a smooth welding bar the seams on the completed structure are noticeable, the desiccion not to use a textured bar meant these seams are more prominent however the variance in texture adds a design quality to the overall aesthetics of the project.

COLLABORATION, CONSTRUCTION AND MAINTENANCE

The design for this ceiling structure was originally flat paneled and dull, however MakMax engineers saw potential in the support columns and decided to use these to create form. Our client, Watpac Specialty Projects were pleased with the addition of the subtle curves and highlighted seams creating a more interesting form which was originally born out of function only.

CREDITS

Project Number: 5004

Title: John Power Stand

Location: Eagle Farm Racecourse, Eagle Farm, QLD, 4009

Entrant: MakMax

Role: Design, Engineer, Fabricator, Installer

Client: Brisbane Racing Club

Structural Engineer: MakMax

Spec Consultant: Fabspan Engineers

Builder: Watpac

Tags: John Power StandfabricLSAAAwards2011MakMax
